“PMS ENGINEERS” was founded in the year 1992 to Focus & Deliver Services in the field of Designing & Manufacturing of Jigs, Fixtures & Functional Gauges. The setup was created with strong technical background and desire to provide innovative solutions to create new paradigms. We believe our success as organization depends on the ability and commitment to perform as a TEAM. We blend the Expertise, Knowledge and Experience to ensure the Service precision.

The experience showcases the Precision & Professional execution in the Services offered. Since 1992 “PMS ENGINEERS” has manufactured various types of Drilling jigs which include indexing jigs ranging from 100 mm Ø to 1500 mm Ø for conventional machines. Fixtures include Holding fixtures for conventional milling as well as HMC & VMC machines for components like Cylinder Heads, Crank Shafts, Connecting Rods, Gear Casings, Flywheel Housings & various types of Air Inlet & Exhaust Manifolds. Welding Fixtures include fixtures for Rear & Front Axles which covered components up to 3500 mm in Length.

Recent achievement of PMS Engineers includes manufacturing of “Line Boring Fixture” for ‘Diesel Engine Crankcase’. This fixture was 1800 mm in length which was aligned within 5 microns for Precision Boring.

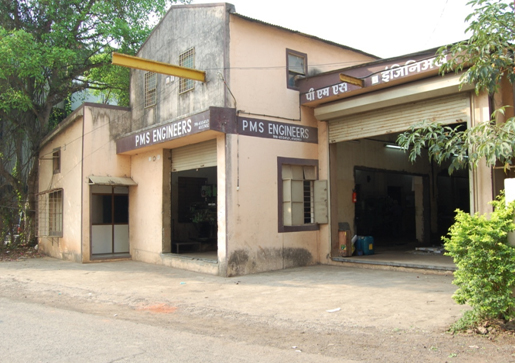

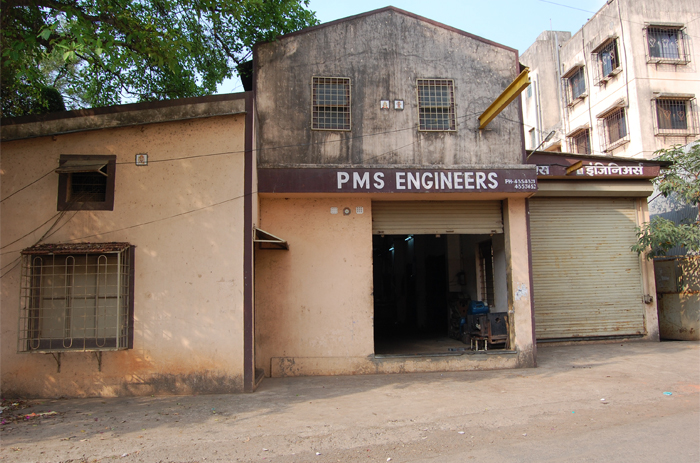

Infrastructure
The infrastructure is actual State-of-the-Art. PMS Engineers is spread over 3,500 Sq. Ft. Area, each department is considered and properly designed to suite the Practise. The Design Department is equipped with the latest Computer Applications to design as per the client requirements.
Other facilities include 62.5 KVA DG Set, overhead crane with 3 tons capacity.


PMS Engineers possesses following machine tools:

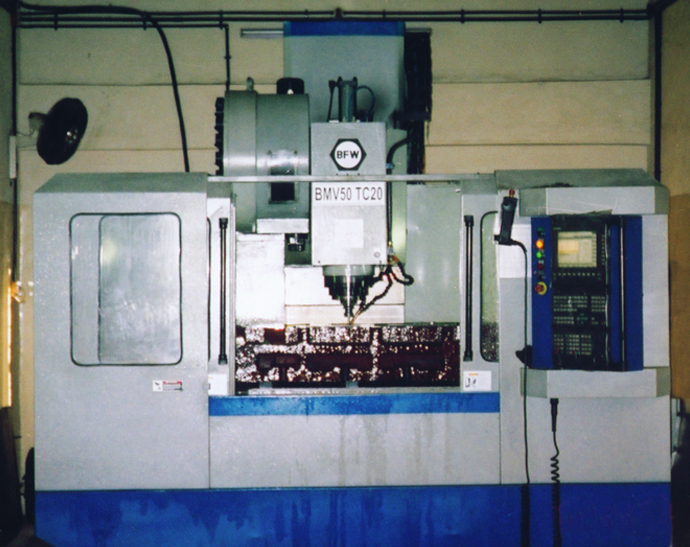

Vertical Machining Center
  BFW - Model BMV 50TC20. X - 1020, Y - 510, Z - 600, RPM 10000, Siemens 840D Controller

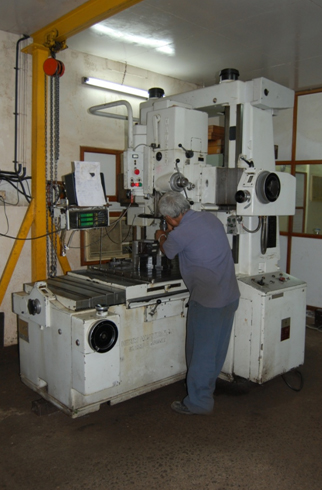

Jig Boring Machine
  Houser, X - 900, Y - 700, Z - 600

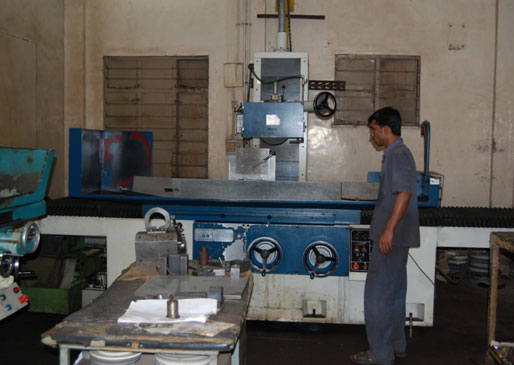

Surface Grinding

Kent Make, Table Size 1000 x 500
WMW Make, Table Size 600 x 200

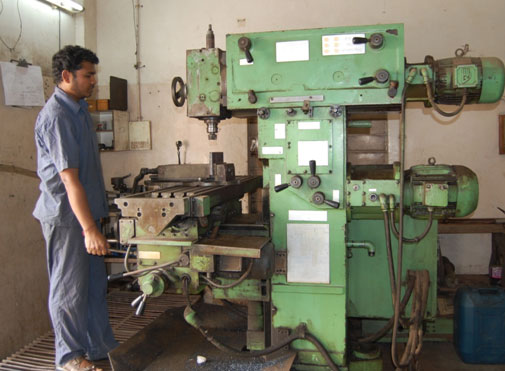

Milling Machines

Universal - BFW SIZE 2
Universal - BFW SIZE 1

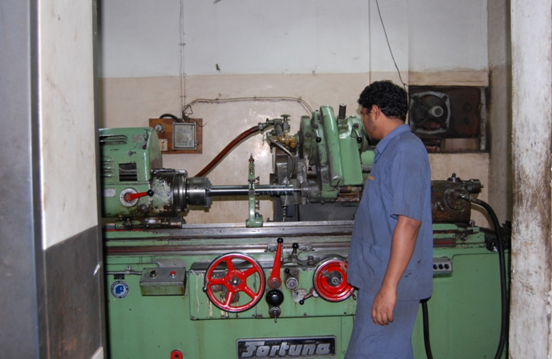

Cylindrical Grinding Machine
  Fortuna Make, grinding capacity up to 350 mm diameter & 1000 mm length

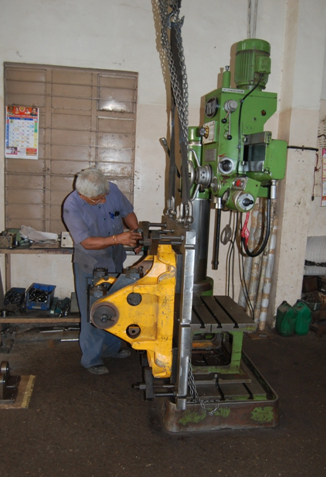

Radial Drill
  Tai Pinn Make, drill diameter up to 38" Steel

The Quality control set up consists of following equipments with scheduled calibration:

1. Mitutoyo Linear Height 600
2. Bore Gauges up to Ø200 mm
3. Micrometers up to 300 mm
4. Vernier Callipers up to 600 mm
5. Depth Micrometers
6. Dial Gauges
7. Height Verniers
8. Height Master
9. Carbide Slip Gauge Set
10. Sine Bar 300 mm
11. Bevel Protractors
12. Comparator Stand
13. Surface Plates - 1600 x 1000 Granite, 600 x 600 Granite, 1800 ---1200 C.I.




Jigs, Fixtures & Gauges
Patterns
Precision Machined Components
Dies & Mould
